Tuesday, March 13, 2012

SQL Server 2012 Brings New Features and Capabilities for SharePoint 2010

Introduction
If you have SharePoint customer or architect and you really should be looking at the new SQL 2012 release. As we all know SharePoint success is highly contingent on SQL Server. You need a strong SQL Server deployment to ensure there is good performance, high availability, back up/recovery, etc. Additionally Microsoft delivers their Business Intelligence (BI) stack through SharePoint and there have been several new features and capabilities added there as well.
For SQL 2012 there are three areas where there have been major capability additions:
  1. Mission Critical Confidence – This is the capability to more easily deliver high-availability with lower total cost of ownership.
  2. Breakthrough Insight – New and expanded capabilities for Business Intelligence.
  3. Cloud on Your Terms – Additional capabilities to create SQL databases in either the private or public cloud (Office 365).
In this blog I am going to cover some of the new SQL 2010 capabilities specifically focusing on how they can improve your SharePoint 2010 implementation. Please note that there are a lot of new capabilities for SQL Server 2012 which I have not covered such as data warehousing, resource management, full text searching, auditing, Big Data (Hadoop), etc. Here is a good reference to quickly spin up on all the new capabilities (“What's New in SQL Server 2012 Whitepaper” located here).
Mission Critical Confidence
AlwaysOn
First and foremost is the new high-availability solution in SQL Server 2012 called AlwaysOn. One of the first and foremost challenges that organizations face with deploying SharePoint 2010 is providing a solution architecture that will meet the SLA’s of their business users. Business processes, technical processes and Governance need to be put in place to ensure that SharePoint 2010 will be up as much as possible.
In the past with SQL Server 2008 R2, you employ such solutions as clustering, mirroring, log shipping and replication (my previous blog on this topic). However this could require a lot of planning, configuration, and management. With SQL 2012 AlwaysOn, new configuration wizards and tuning tools are now provided that makes set-up and configuration of High-Availability extremely simple.
The concept of Availability Groups have been added which specifically makes configuration of Database Mirroring easier. Availability Groups are a logical of databases that failover together. Through the configuration wizard, you can determine if you need such things as automatic or manual failover, set-up of primary and multiple secondary instances, synchronous or asynchronous data movement, etc.
Availability Groups remove the need for shared disk storage (SAN or NAS) for deployment of a failover cluster instance. Note that AlwaysOn Failover Cluster Instances support multiple-site clustering across subnets which subsequently enables cross datacenter failover.
This feature is very useful when setting up your SharePoint 2010 (or 2007) farm because High Availability is one of the most paramount tasks that are needed when setting up a mission critical SharePoint environment.
Recovery Advisor
Database Recovery Advisor provides many new features and capability for the support of back-up and restore of databases through SQL Server Management Studio. The new Recovery Advisor streamlines the back-up process. One such solution is a visual timeline that provides the backup history and all the available points in which you can restore from.
There is also new capability called Split File Backup which allows you to split a backup into multiple files. This allows for quicker backup and restores because they can be written and restored across disks running in parallel.
This is very helpful for improving the amount of time to work with large SharePoint 2010 (or 2007) Content Databases that have grown significantly.
Breakthrough Insight
As you probably already know SharePoint 2010 is where Microsoft’s Business Intelligence (BI) stack is delivered. This is a combination of solutions such as Excel Services, PerformancePoint, Visio Services, Chart Web Parts (Dundas), PowerPivot, and SQL Reporting Services (SSRS). With the release of SQL 2012 a new solution called Power View is now provided, PowerPivot can now be done on SharePoint 2010 server side and there is significantly enhanced integration with SSRS.
Power View

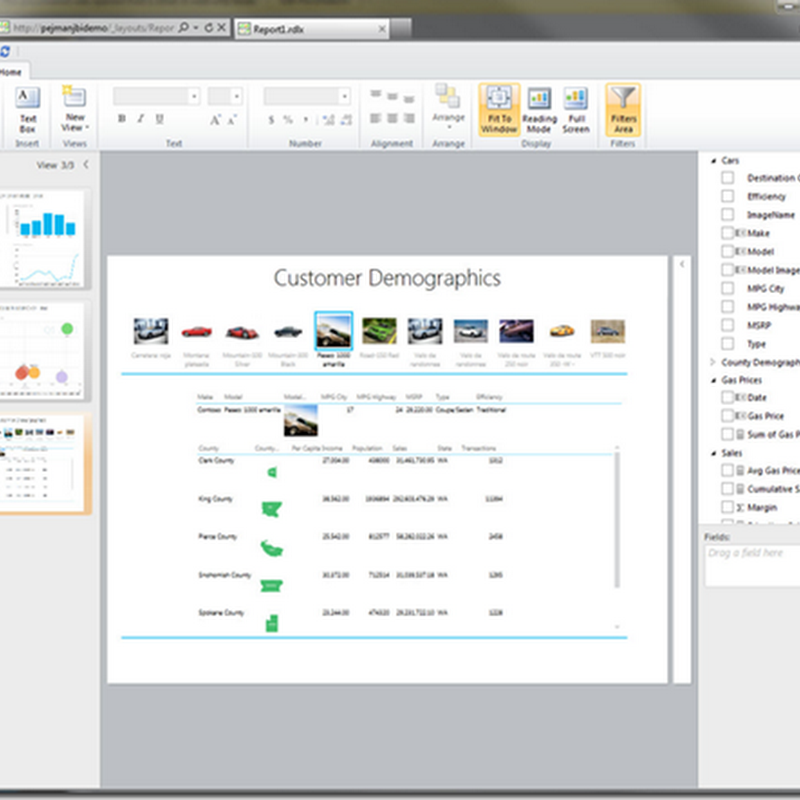

Power View is a new highly interactive data exploration and reporting tool that allows business users to visually explore data, in an ad-hoc fashion. End users can create the reports/dashboards very quickly, create shapes/graphs with clicks, create animation, highlight capabilities based on rules, drill down relationships and performs very well with large datasets. The design environment is very similar to Office. It can be published through SharePoint 2010 as shown in the diagram below.image
Note that Power View requires SQL Reporting Services (SSRS) to be integrated with SharePoint 2010 and there be an instance of SQL Server 2012 Analysis Services (SSAS) or PowerPivot be available.
PowerPivot
Up to this point PowerPivot was a solution that was available through Excel client only via an Add-in. This is a really powerful, end user friendly capability that allows for data analytics. There are actually several new capabilities that have been introduced that I recommend you read up on (in references below).
Specifically to SharePoint 2010, PowerPivot for SharePoint is available as an add-in and can run server side in conjunction with Excel Services. This now allows end users the ability to publish PowerPivot reports through the browser allowing end users easy access to this data.
As well, in SharePoint 2010 Central Administration there is a new PowerPivot Management Dashboard that provides several reports on performance of reports.
SQL Reporting Services (SSRS)
Personally the enhancements to SSRS are very exciting to me as I have had to do configuration of SSRS with SharePoint 2007 and 2010 in the past in production environments. If you have done it before, you may recall it was tedious task of configuration the SSRS Configuration Wizard and getting Kerberos Authentication set-up correctly. Now with SQL Server 2012, configuration of SSRS with SharePoint 2010 is completely done through Central Administration. Additionally there is a new service in SharePoint 2010 that runs SSRS, it supports WCF/Claims authentication, integrated ULS logging, built in load balancing across SharePoint servers, report performance improvements and there are PowerShell commands for management.
Additionally there is a SSRS alerting capability that allows end users to subscribe to alerts that are associated to SSRS report. Users can create conditions for any report, and when they are met a notification will be sent to them.
One more last addition change is you may know that SSRS reports can generate Word or Excel Documents. Up to now, the file formats generated were either .doc or .xls which means they are not Open XML document renditions. With SQL Server 2012 and SSRS now .docx and .xlsx file types will now be generated.
Cloud on Your Terms
With SQL Server 2012, there are a bunch of new capabilities to support even tighter integration with SQL Azure. You will have a unified database development experience between SQL 2012 on-prem and SQL Server. The reason why I bring this up is because it is very common that when creating a solution inside SharePoint, you will have complex data management requirements that can be better supported with a SQL Server database instead of a SharePoint list.
Now we have the ability to more quickly and efficiently create custom database in SQL Azure which can be utilized with SharePoint 2010. Plus this is really good for working with Office 365 SharePoint Online because we can make a cloud to cloud connection to work with advanced data structures.
References
